Image file: Take a picture of your product circuit in JPG format, recommanded file size is less than 1Mb. The image file will be used as the background of virtual workspace on Cloud.

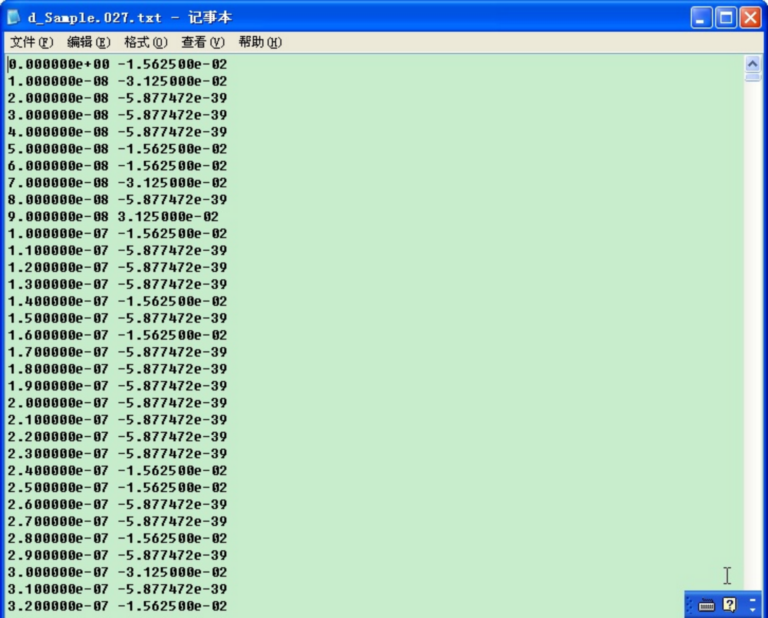

Data file: Measure and save data file acquired with a digital oscilloscope from the product circuit. The data file is formatted in two columns separated with space: the left column represents time and the right column represents voltage
System will automatically recognize uploaded oscilloscope measurement data file which is saved in *.txt or *.csv format. The uploaded data file will be reformatted into N*1024 length, where N = 1,2,4,8,16; the data exceed 16*1024 data length will be ignored. In case a data file fails to be recognized or the data file's time/frequency domain analysis shows distorted image, manually edit this data file according to above mentioned data file requirements, delete the space or empty line after the last data (last row), then re-upload the data file.
In order to make the data acquired by an oscilloscope comparable, the setup of the oscilloscope should remain the same during data acquirement. EMCExplorer-SAAS recognizes the sampling frequency of the first data file as the unique sampling frequency of all data files by default, and recognizes the shortest data length among all the data files as the unique data length for all.
The data file number that the system may analyze each time is up to 30, for each data file the first maximum 16*1024 data will be analyzed.
